TLS

whoami

Fedor Indutny

Node.js core (TLS, Crypto)

SSL / TLS

Understanding crypto in C could be...

• ...a bit painful

But what if...

• Fast scripting language

• Bare protocol

• Simple OpenSSL bindings

TLS.js

https://github.com/indutny/tls.js

TLS.js

npm install tls.js

• Hack with it!

demo time

MiTM

• WiFi ssid + key

• +

• RSA private key

• = fun!

Toggle your wifi connection

•

  https://nodeconf.indutny.com

• submit some messages

Fork MiTM.js

https://github.com/indutny/mitm.js

How does TLS work, anyway?

RFC 5246

• ...is scary

• lots of pages

• such... wow

Without minor nits, version differences, compatibility...

• protocol is simple!

Some useful info first...

Cipher Suite

Collection of algorithms

• Key exchange (DH, DHE, ECDH, DCHE)

• Auth (RSA, DSA, ECDSA)

• Cipher (AES, DES, ChaCha, IDEA)

• Hash (MD5, SHA1, SHA256)

algorithms.join('-');

algorithms.join('-');
'AES256-SHA'; // RSA is omitted here

algorithms.join('-');
'AES256-SHA'; // RSA is omitted here
'ECDHE-RSA-AES256-SHA384';

algorithms.join('-');
'AES256-SHA'; // RSA is omitted here
'ECDHE-RSA-AES256-SHA384';
'NULL-MD5'; // Don't use it!

List of supported ciphers

$ openssl ciphers -v
DHE-RSA-AES256-SHA
DHE-DSS-AES256-SHA
AES256-SHA
...

Server configuration

openssl ciphers -v \
ECDHE-RSA-AES256-SHA384:AES256-SHA:AES128-SHA

Order of preference

Preference criteria

• 1. PFS (ECDHE, DHE)

• 2. AES256, AES-GCM

• 3. Stronger hashes (SHA256, SHA384, not MD5)

Support older clients

My recommendation

http://git.io/Vqkt9g

tls.createServer({
  key: ...,
  cert: ...,
  honorCipherOrder: true,
  ciphers:
    'ECDHE-RSA-AES256-GCM-SHA384:' +
    'ECDHE-RSA-AES128-GCM-SHA256:...'
}, ...)

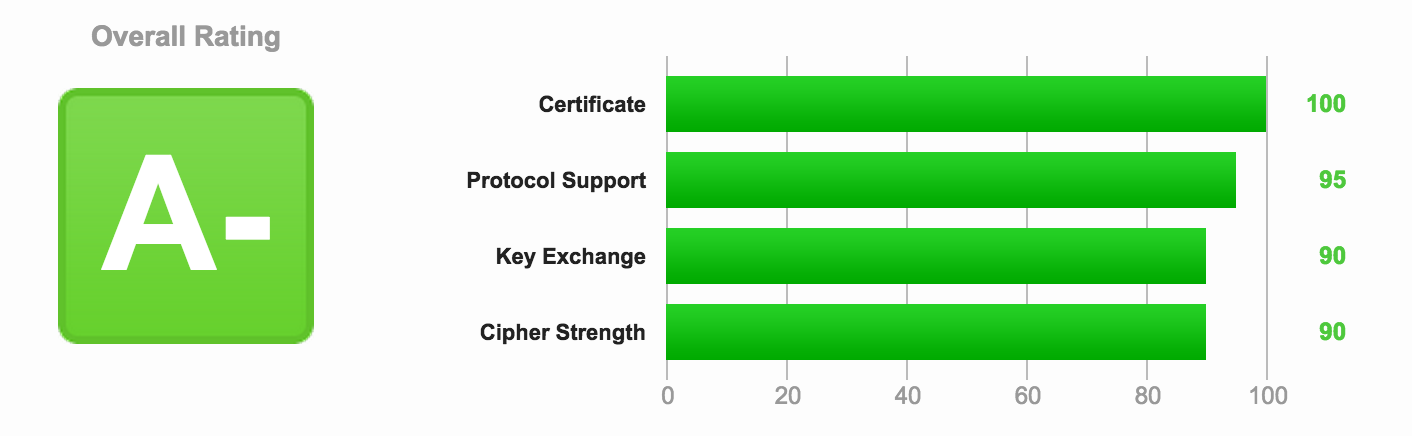

Check your server here

ssllabs.com/ssltest/

Now back to TLS.js

Framer

var state = tls.state.createDummy({});
var framer = tls.framer.create(state);
framer.hello('client', {
  cipherSuites: [],
  random: new Buffer(32)
});
framer.read();  // <Buffer 16 03 03 ...
// or framer.pipe(socket)

Parser

var parser = tls.parser.create(state);
framer.pipe(parser);
framer.hello('client', {
  cipherSuites: [],
  random: new Buffer(32)
});
parser.read();  // output on next slide

Parser

{ version: 0x0303, // TSL1.2
  maxVersion: 0x0303, // TLS1.2
  type: 'handshake',
  handshakeType: 'client_hello',
  random: ...,
  session: false,
  cipherSuites: [],
  cipherSuite: null,
  extensions: {} }


State machine

if (frame.type === 'alert')
  handled = this.handleAlert(frame);
else if (frame.type === 'handshake')
  handled = this.handleHandshake(frame);
else if (frame.type === 'change_cipher_spec')
  handled = this.handleChangeCipher(frame);
else if (frame.type === 'application_data')
  handled = this.handleAppData(frame);


Handshake example

ClientHello

this.framer.hello('client', {
  maxVersion: 0x0303,  // TLS1.2
  cipherSuites: [
    // Pick some from:
    // `tls.constants.cipherSuite`
    'TLS_RSA_WITH_AES_128_CBC_SHA'
  ],
  extensions: {
    server_name: 'deathstar.empire.com',
  }
});

ServerHello

var cipher = this.selectCipherSuite(
    frame.cipherSuites);
if (!cipher)
  return false;

this.framer.hello('server', {
  cipherSuite: cipher
});

Certificate (usually)

this.framer.certificate([
  new Buffer(...),
  new Buffer(...)
]);

and ServerHelloDone

this.framer.helloDone();

Now both sides know:

• Algorithms

• But don't have keys, IVs

ClientKeyExchange

var preMaster = new Buffer(2 + 46);
preMaster.writeUInt16BE(this.version, 0, true);
this.crypto.random(46).copy(preMaster, 2);

this.pending.preMaster = preMaster;

ClientKeyExchange (pt 2)

var out = new Buffer(2 + pub.size());
this.crypto.encryptPublic(out.slice(2),
                          preMaster,
                          pub);

out.writeUInt16BE(out.length - 2, 0, true);
this.framer.keyExchange('client', out);

Meanwhile on server

var preMaster = new Buffer(48);
preMaster = this.crypto.decryptPrivate(
    preMaster,
    keyEx,
    this.key.key);


Both have shared

PreMaster secret

Generate keys, through

PRF expansion

PRF expansion

// Pseudo-code
Math.setRandomSeed(preMaster)
while (still_needed)
  out.push((Math.random() * 256) | 0);


Both sides ready to encrypt

ChangeCipherSpec/Finished

// All consequent data will be encrypted
this.framer.changeCipherSpec();
// Verify the handshake integrity
this.switchToPending('write', function() {
  self.framer.finished(verifyData);
});

Established!

client.emit('secure');
server.emit('secure');

client.write('GET / HTTP/1.1\r\n\r\n');
server.write('HTTP/1.1 200 OK\r\n\r\n' +
             'hello world');


Fork TLS.js

https://github.com/indutny/tls.js

Fork OpenSSL

https://github.com/openssl/openssl

FIN

Side notes

Bud

https://github.com/indutny/bud

TLS babel-fish

Features:

Runs on libuv

JSON config

{
  "workers": 8,
  "frontend": {
    "key": "key.pem",
    "cert": "cert.pem",
    "port": 443
  },
  "backend": [{
    "host": 80
  }]
}

• (a)?sync SNI routing

• async OCSP stapling

• Backend balancing

• DTrace hooks

• DSO logger

JSON proxy

BUD {"family":"tcp4","peer":{"host":...,"port":...},...}
GET / HTTP/1.1

Bud is fun!

$ npm install -g bud-tls
$ bud -h
$ bud --default-config > conf.json
$ vim conf.json
$ bud --config conf.json

FIN

FIN.

FIN..

FIN...

Looks like I have more time!

node.js v0.12 TLS changes

• TLS moved to C++

• ECDHE/DHE cipher support

• Async OCSP stapling

crypto changes:

• ECDH

• RSA

• AES-GCM support

FIN
